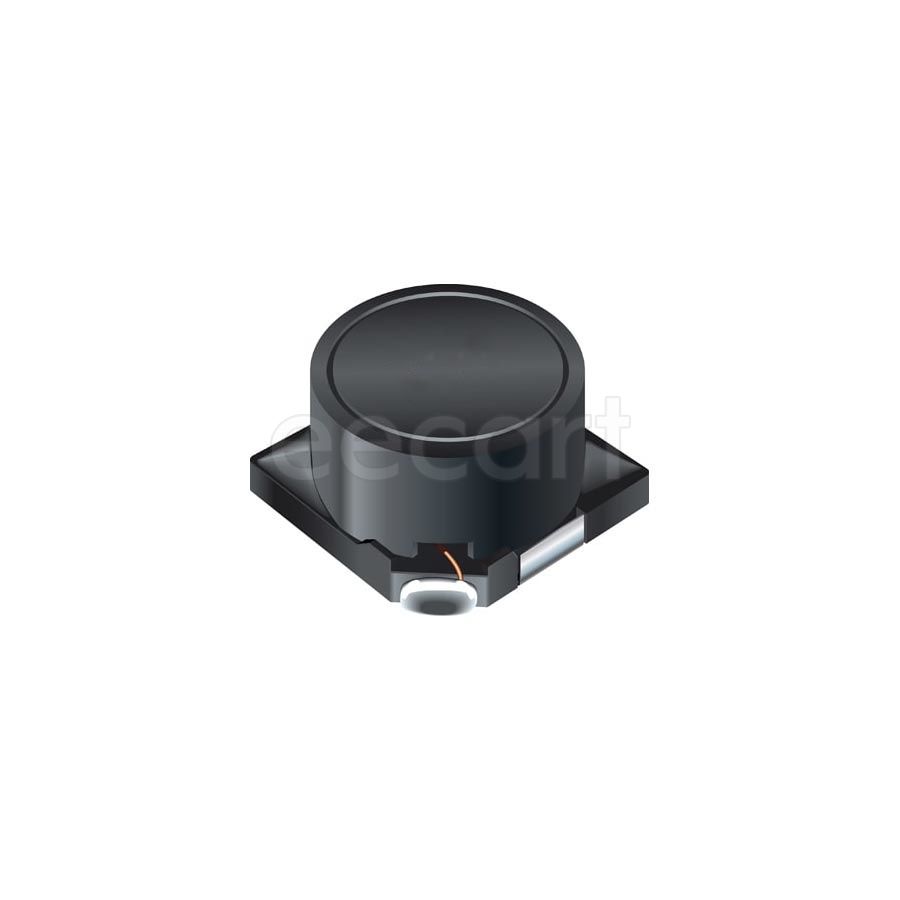

SLF7045T-470MR90-H
Manufacturer:
TDK Corporation
Mfr.Part #:
SLF7045T-470MR90-H
Datasheet:
Description:
Fixed Inductors 7.00mmD×4.50mmH SMD/SMT 47 µH 20 % 900 mA 216 mΩ
| Parameter | Value |
|---|---|
| Tolerance | 20 % |
| Height - Seated (Max) | 4.8 mm |
| Length | 7.0104 mm |
| Width | 7.0104 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -40 °C |
| Case Code (Metric) | 7045 |
| Composition(Kit Type) | Wirewound |
| Height | 4.5 mm |
| Packaging | Reel |
| Depth | 7.2 mm |
| Lead Free | Lead Free |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Ratings | AEC-Q200 |
| Current Rating | 900 mA |
| DC Resistance (DCR) | 216 mΩ |
| Test Frequency | 100 kHz |
| Military Standard | Not |
| Lifecycle Status | Production (Last Updated: 1 year ago) |
| Shielding | Shielded |
| Inductance | 47 µH |
| Core Material | Ferrite |
| RMS Current (Irms) | 930 mA |
| inductance tolerance | 20 % |
| Max DC Current | 900 mA |
| Saturation Current | 900 mA |
| Schedule B | 8504500000 |
| Type | Wirewound |
Stock: 10653
Distributors
pcbx
pcbxUnit Price$0.58180
Ext.Price$0.58180
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.58180 | $0.58180 |
| 10 | $0.48050 | $4.80500 |
| 25 | $0.44420 | $11.10500 |
| 50 | $0.41893 | $20.94650 |
| 100 | $0.39491 | $39.49100 |
| 300 | $0.36885 | $110.65500 |
| 500 | $0.34451 | $172.25500 |
| 1000 | $0.27070 | $270.70000 |
